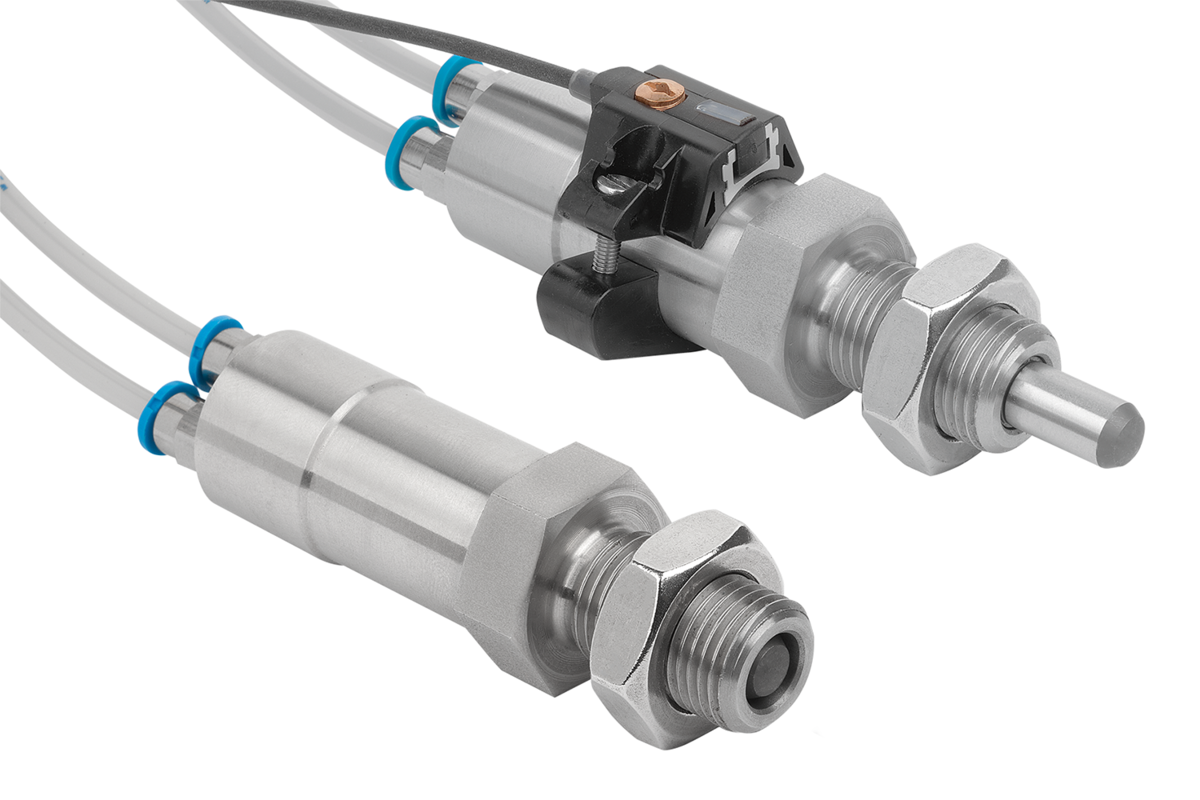

Indexing plungers, stainless steel, pneumatic

Indexing plungers, stainless steel, pneumatic

PriceOn quote● Supplier reply within 48 h

Request a quote for this product only, or add it to your selection to group several products and enter your details just once. Free and without obligation.

View this product on the manufacturer’s website

Why choose our Marketplace ?

  • Simplify your purchases
  • Over 20 years of expertise
  • Certified suppliers
  • Fast and free service
Logo norelem norelemManufacturer and supplier of standard components for machine construction and mechanical engineering, norelem…

Description

Indexing plungers are used where it is necessary to prevent changes of position due to lateral forces.

Some examples of this are for length, height and position indexing in machines, equipment, furniture and special vehicle construction.

Pneumatic indexing plungers are operated by compressed air. This facilitates automatic retraction or extension of the indexing pin.

In addition, the indexing point can be located in an area inaccessible for manual operation.

By the version with status sensor, the actuation status can be detected and evaluated electronically.

For this purpose, the magnetic field sensor is clamped in the slot profile of the sensor holder. The status sensor and sensor holder can be moved axially and secured to suit the desired sensing position.

Technical specifications

Material

Threaded sleeve stainless steel 1.4305.
Indexing pin stainless steel 1.4034.
Piston seal and O-rings NBR.
Rod seal TPU.
Magnet NdFeB.
Locknut stainless steel A2-70.
Magnetic field sensor thermoplastic PA12.
Sensor holder POM, slot profile aluminium.

Version
Indexing pin hardened, ground and bright.
Method of operation
Form A and B: single-acting with spring return
Form C: double-acting

Technical Data
Pneumatic properties:
Operating pressure: 4-6 bar
filtered, dried air, lubricated or unlubricated

Magnetic field sensor:
Output relay: PNP normally open (NO)
Operating voltage: 10 - 30 V DC
Operating current: 200 mA
Switch field strength: 2 kA/m
Switching frequency: 3000 Hz
Short-circuit proof: yes
Reverse polarity protected: no
Rating: IP67
Connection type: 2 m PUR cable

Temperature range: -25 °C - +85 °C

Approvals: CE, c-UL-us, UKCA, WEEE

Application
In automated production plants and fixtures.

Temperature range
-30 °C to +80 °C
