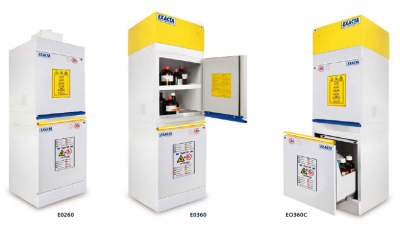

Combistorage Series 2C Safety Cabinet

TECHNICAL SPECIFICATIONS:
Fully constructed from electro-galvanised steel sheet of thickness 1 to 1,5 mm, cold-formed – Grey RAL7035 colour

Exterior finish in anti-acid epoxy resin and passage through a thermal tunnel at 200°C

Two separate compartments (upper and lower), for flammables and acids/bases:

FLAMMABLES COMPARTMENT TYPE 90
Cabinet insulation with high-density rock wool panels and calcium sulphate panels for the flammables compartment

Internal finishing panels in melamine with high resistance to chemical and aggressive vapours

Structure allowing replacement of spare parts if required

Automatic closing of the doors when the ambient temperature exceeds 50°C

Thermally expanding insulation seals of 30 mm which, in the event of a rise in temperature, ensure a perfect seal of the cabinet, in accordance with standard EN14470-1

Air inlet and outlet openings with certified fire dampers closing the ducts when the temperature exceeds 70°C in accordance with DIN 4102-6 standard.

Closing system allowing the door to be held open in any position and closed automatically when the ambient temperature exceeds 50°C

Anti-spark hinge ensuring perfect door strength

Available as a cabinet with doors or drawers depending on the model

Key lock

Equipped with a retention tray with painted steel grating serving as a shelf

ACIDS/BASES COMPARTMENT
Internal finishing panels in melamine with high resistance to chemical and aggressive vapours

Structure allowing replacement of spare parts if required

Door opening with an angle of more than 110°

Key lock

Retention shelves in painted steel and stainless steel, height-adjustable

Cabinet equipped with an integrated ventilation system with external connection or pre-equipped for ventilation via a Ø 100mm collar

Cabinet equipped for earthing

Levelling feet

ISO 3864: Pictogram signage

Cabinets certified to standards EN14470-1, EN61010 and EN14727

Certified fire resistant for 90 minutes
