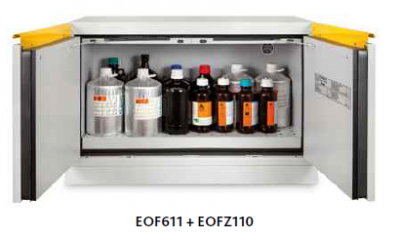

COMBISTORAGE Under-Bench Cabinets

Our COMBISTORAGE under-bench range optimises your laboratory space!

The tailor-made solution for replacing your wooden or steel laboratory furniture with a combination of safety cabinets: acids, bases and flammables.

Each cabinet in the COMBISTORAGE under-bench range can be combined on bases of different widths.

Our different cabinet widths and heights allow you to find the solution to your storage problems in your laboratory
Openings: left-hand doors / right-hand doors / drawers

13 possible widths: from 400 to 1800 mm

Bases: H 80 mm

All our models are available in 2 heights: 620 mm & 720 mm

TECHNICAL CHARACTERISTICS:

COMBISTORAGE FLAMMABLES
Fully constructed from electro-galvanised steel sheet with a thickness of 1 to 1,5 mm, cold-formed – Grey colour RAL7035

Exterior finish in acid-resistant epoxy resin and passage through a thermal gallery at 200°C

Insulation of the cabinet with high-density rock wool panels and calcium sulphate panels

Internal finishing panels in HPL with high resistance to chemical and aggressive vapours

Structure allowing replacement of spare parts if required

Automatic closing of the doors when the ambient temperature exceeds 50°C

Thermally expanding insulation seals of 30 mm which, in the event of a temperature rise, ensure a perfect seal of the cabinet, in accordance with standard EN14470-1

Air inlet and outlet openings with certified fire dampers closing the ducts when the temperature exceeds 70°C in accordance with DIN standard 4102-6.

Provision for ventilation via a collar of Ø 100mm for external connection or on a filtered ventilation system (see chapter on ventilation)

Spark-proof brass hinges ensuring perfect door strength

Cabinet equipped for earthing

Levelling jacks

Key locking of doors and drawers

Shelves in painted steel or stainless steel, height-adjustable

Shelves fixed with aluminium rivets excluding any spark risk

Shelves fire-tested

ISO 3864: Pictogram signage

Certified fire resistant for 90 minutes, in conformity with standard EN14470-1 BVQI

Certified compliant with standard EN14727 BVQI

COMBISTORAGE ACIDS / BASES
Fully constructed from electro-galvanised steel sheet with a thickness of 1 to 1,5 mm, cold-formed – Grey colour RAL7035

Exterior finish in acid-resistant epoxy resin and passage through a thermal gallery at 200°C

Internal finishing panels in HPL with high resistance to chemical and aggressive vapours

Structure allowing replacement of spare parts if required

Provision for ventilation via a collar of Ø 100mm for external connection or on a filtered ventilation system (see chapter on ventilation)

Cabinet equipped for earthing

Levelling jacks

Key locking of doors and drawers

Shelves in painted steel or stainless steel, height-adjustable

Shelves fixed with rivets

ISO 3864: Pictogram signage

Certified compliant with standard EN61010

Certified compliant with standard EN14727 BVQI
