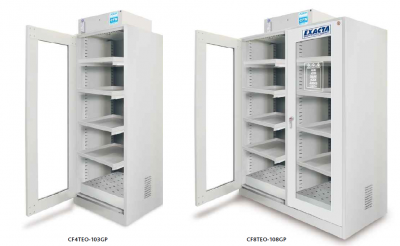

Filter cabinets NFX15-211 sliding shelves

TECHNICAL SPECIFICATIONS CABINETS
Fully constructed from electro-galvanised sheet steel with a thickness 10/10 mm, cold-formed – Colour Grey RAL7035

Exterior finish in anti-acid epoxy resin and passage through a thermal tunnel at 200°C

One-piece construction with levelling feet

Double-walled swing door, glazed in Sécurit safety glass 6 mm (3mm + polyvinyl film + 3mm)

Key lock

Door opening with an angle of 110° allowing shelves to be removed without tilting them

Equipped with sliding shelves and a retention tray with painted steel grating and absorbent mat

Standardised pictograms compliant with ISO standards 3864

Compliant with EN 61010-1 & IEC 66-5 standards

Compliant with articles 5162 and 5170 of the French Public Health Code

Equipped with a filtered ventilation unit compliant with AFNOR standard NFX 15-211 (filter to be selected according to the nature of the stored products)

TECHNICAL SPECIFICATIONS OF THE FILTER UNIT
Construction in electro-galvanised steel 10/10 coated with grey epoxy paint RAL 7035

Axial fan (turbine)

Flow rate: 100/250 m3/h

Voltage/frequency: 220volts/50Hertz

IP44

Noise level 45db

Compliant with ISO standard 3744

On/Off switch with indicator light for correct operation

Visual and audible LED operating hour meter

Filter saturation indicator with visual and audible LED indicators: measurement of air velocity through the activated carbon filter.

Retention capacity CCl4 on the filter of 7000g (in compliance with the efficiency level defined by AFNOR standard NFX 15-211), i.e. a maximum release of 50% of the average exposure value of the product

For the detailed sheet of the filter unit compliant with standard NFX 15-211, please refer to the chapter dedicated to ventilation
