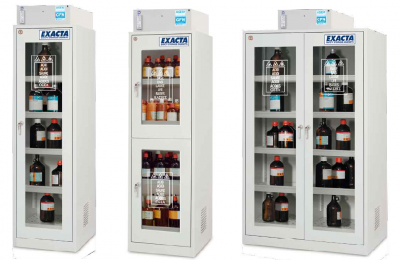

Filtered storage cabinets NFX15-211

TECHNICAL SPECIFICATIONS CABINETS
Fully constructed from electro-galvanised steel sheet 10/10 mm thick, cold-formed – Grey colour RAL7035

Exterior finish in anti-acid epoxy resin and passed through a thermal oven at 200°C

One-piece construction with levelling feet

Double-walled swing door, glazed with Sécurit safety glass 6 mm (3mm + polyvinyl film + 3mm)

Key lock

Door opening at an angle of 110° allowing shelves to be removed without tilting them

Equipped with 4 fixed shelves + 1 painted steel retention tray, height-adjustable per compartment

Standardised pictograms compliant with ISO 3864 standards

Compliant with EN 61010-1 & IEC 66-5 standards

Compliant with articles 5162 and 5170 of the French Public Health Code

Equipped with a filtered ventilation unit compliant with the AFNOR standard

TECHNICAL SPECIFICATIONS OF THE FILTERED UNIT
Construction in electro-galvanised steel 10/10 coated with RAL 7035 grey epoxy paint

Axial fan (turbine)

Flow rate: 100/250 m3/h

Voltage/frequency: 220volts/50Hertz

IP44

Noise level 45db

Compliant with ISO 3744 standard

On/Off switch with indicator light for correct operation

Visual (LED) and audible operating hour meter

Filter saturation indicator with visual (LED) and audible indicators: measures the air speed through the activated carbon filter.

Retention capacity CCl4 on the filter of 7000g (in accordance with the efficiency level defined by AFNOR standard NFX 15-211), i.e. a maximum release of 50% of the average exposure value of the product

For the detailed sheet of the filtered unit compliant with standard NFX 15-211, please refer to the chapter dedicated to ventilation
