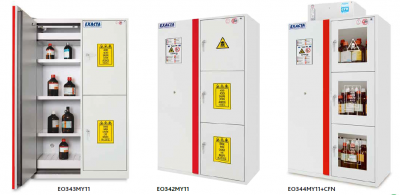

Safety cabinet Combistorage 3C Series & 4C

TECHNICAL SPECIFICATIONS:
Fully constructed from electro-galvanised sheet steel with a thickness of 1 to 1,5 mm, cold-formed – Grey RAL7035 colour

Exterior finish in anti-acid epoxy resin and passed through a thermal oven at 200°C

Cabinet prepared for ventilation

Cabinet equipped for earthing

Levelling feet

ISO 3864: Pictogram signage

Certified fire resistant for 90 minutes

Cabinets certified to standards: EN14470-1, EN61010 and EN14727

FLAMMABLE COMPARTMENT TYPE 90
Cabinet insulation with high-density rock wool panels and calcium sulphate panels for the flammables compartment

Internal finishing panels in melamine with high resistance to chemical and aggressive vapours

Structure allowing replacement of spare parts if necessary

Automatic closing of doors when the ambient temperature exceeds 50°C

Thermo-expanding insulation seals of 30 mm which, in case of temperature rise, ensure perfect sealing of the cabinet, in accordance with standard EN14470-1

Air inlet and outlet openings with certified fire dampers closing the ducts when the temperature exceeds 70°C in accordance with DIN standard 4102-6.

Door closing and locking system allowing doors to be held open and closed automatically in case of ambient temperature above 50°C

Anti-spark hinge ensuring perfect door strength

Key lock

Equipped with three retention shelves and a retention tray with painted steel grating serving as a shelf

MULTI-RISK COMPARTMENT FOR NON-FLAMMABLE PRODUCTS
Composed of two or three compartments with solid or glazed doors

Cabinet body in galvanised steel

"Acids" compartment
Two painted steel retention shelves, height-adjustable

Doors opening at an angle of more than 110°

Key lock

Compliant with standards EN 61010-1 & IEC 66-5

Storage capacity: 40 bottles of 1L (20L per shelf)

"Bases" compartment
Two stainless steel retention shelves, height-adjustable

Doors opening at an angle of more than 110°

Key lock

Compliant with standards EN 61010-1 & IEC 66-5

Storage capacity: 40 bottles of 1L (20L per shelf)

"Toxics" compartment
Two painted steel retention shelves, height-adjustable

Doors opening at an angle of more than 110°

Key lock

Compliant with standards EN 61010-1 & IEC 66-5

Storage capacity: 40 bottles of 1L (20L per shelf)
