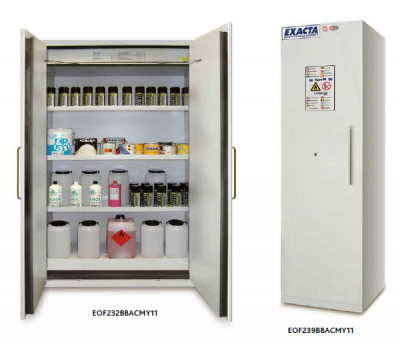

Series BBACMY11 Grey Safety Cabinet

TECHNICAL SPECIFICATIONS:
Fully constructed from electro-galvanised steel sheet with a thickness of 1 to 1,5 mm, cold-bent – Grey RAL7035 colour

External finish in anti-acid epoxy resin and passage through a thermal tunnel at 200°C

Cabinet insulation with high-density rock wool panels and calcium sulphate panels

Internal finishing panels in melamine with high resistance to chemical and aggressive vapours

Structure allowing replacement of spare parts if required

Automatic closing of the doors when the ambient temperature exceeds 50°C

Thermo-expanding insulation seals of 30 mm which, in the event of a temperature rise, ensure perfect sealing of the cabinet, in accordance with standard EN14470-1

Air inlet and outlet openings with certified fire-resistant dampers closing the ducts when the temperature exceeds 70°C in accordance with DIN standard 4102-6.

Provision for ventilation via a Ø 100mm collar for external connection or filtered ventilation system (see chapter on ventilation)

Closing system allowing the doors to be held open in any position and closed automatically when the ambient temperature exceeds 50°C

Anti-spark hinges ensuring perfect door strength

Cabinet equipped for earthing

Levelling feet

Doors lockable with key

3 shelves in painted steel or stainless steel (optional), height-adjustable, 1 retention tray with duckboard

Shelves fixed with aluminium rivets, excluding any risk of sparking

Shelves fire-tested

ISO 3864: Pictogram signage

Certified fire resistant for 90 minutes, in conformity with standard EN14470-1 BVQI (Bureau Vérification Qualité International Veritas)

Certified compliant with standard EN14727 BVQI (Bureau Vérification Qualité International Veritas)
