Description

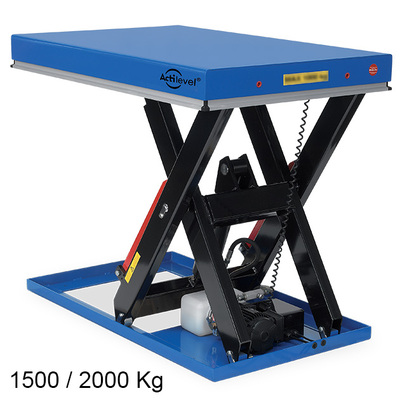

Single scissor model
DESCRIPTION:
- High-strength tubular scissor arms with bichromate-treated steel pivot shaft
- Self-lubricating rollers
- Folding safety stand for maintenance operations
- Hydraulic cylinders positioned between the scissor arms, with hard chrome-plated steel cylinder rods
- Integrated hydraulic power unit 0,8KW (HPI) three-phase 400V/50 Hz
- Anti-pinch safety frame in aluminium profile mounted around the platform perimeter, with 'Telemecanique' contactors
- Adjustable upper limit switch
- Exclusive 'dead man' type manual control box with raise/lower button and 'mushroom head' type emergency stop, supplied with safety padlock, on coiled cable length 3500 mm
- Blue RAL 5017 epoxy finish; scissor arms: safety black RAL 9005
- Line protection power supply and connection to the customer's load.
- This equipment is guaranteed for 2 years under normal conditions of use (8 hours per day, 5 days per week, in normal atmosphere)
DESCRIPTION:
- High-strength tubular scissor arms with bichromate-treated steel pivot shaft
- Self-lubricating rollers
- Folding safety stand for maintenance operations
- Hydraulic cylinders positioned between the scissor arms, with hard chrome-plated steel cylinder rods
- Integrated hydraulic power unit 0,8KW (HPI) three-phase 400V/50 Hz
- Anti-pinch safety frame in aluminium profile mounted around the platform perimeter, with 'Telemecanique' contactors
- Adjustable upper limit switch
- Exclusive 'dead man' type manual control box with raise/lower button and 'mushroom head' type emergency stop, supplied with safety padlock, on coiled cable length 3500 mm
- Blue RAL 5017 epoxy finish; scissor arms: safety black RAL 9005
- Line protection power supply and connection to the customer's load.
- This equipment is guaranteed for 2 years under normal conditions of use (8 hours per day, 5 days per week, in normal atmosphere)
Technical specifications
| Category | Packing, Handling, Logistics |
|---|---|
| Subcategory | Handling, Lifting |
