M2 or M3 stainless steel fastening screws are included.
Mounting option 1 for plate thickness 6 mm.
Mounting option 2 for plate thickness >6 to 20 mm.
A gap of more than 0.1 mm appears between the plates if the retaining force is exceeded.
Characteristic(s)
Material
Housing stainless steel 1.4305.
Pin steel.
Twist knob stainless steel 1.4301.
Version
Stainless steel bright.
Steel nickel-plated.
Method of operation

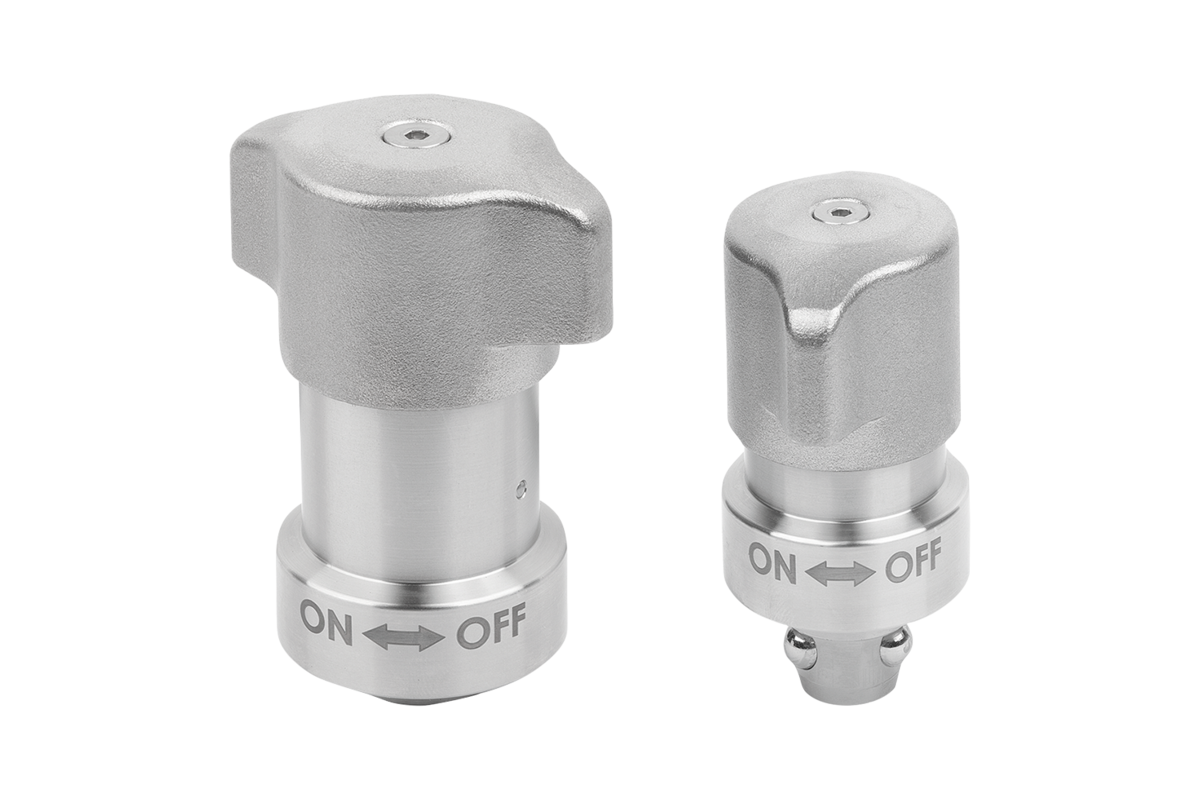

Check that the twist knob is in the ”OFF” position and that the pin is retracted.
Place the ball lock pin over the receiving bush or insert it. Press the twist knob down and turn it to the ”ON” position. When fully clamped, an audible click will be heard.
Accessory
Locating bush, steel, for ball lock pin 03191-95.
