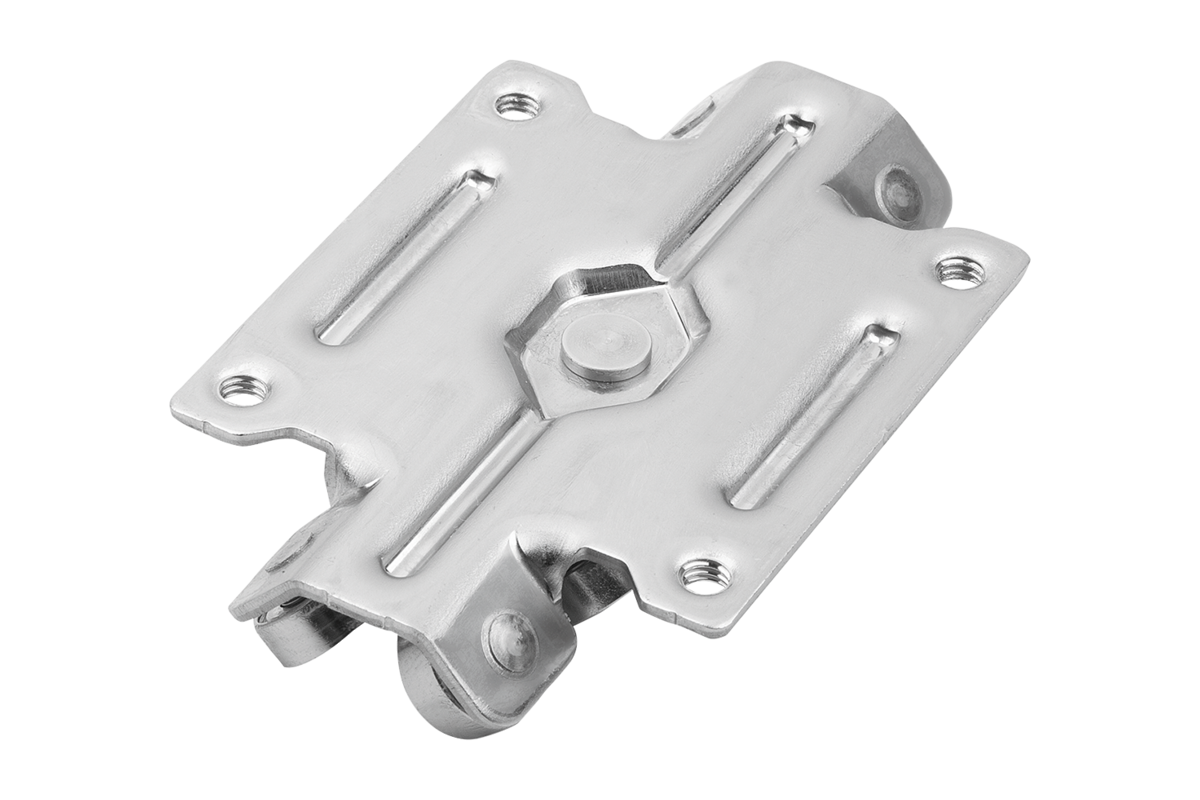

Miniature roller guide carriage for 32 mm width, Dual X

The Dual-X structure of the rollers enables smooth movement under vertical and horizontal loads. Smooth running is maintained even under torque loads.

Ball creep does not occur.

The carriages and guide rails were tested at 200 mm/s for 500,000 cycles over 100 mm.

The forces correspond to maximum load capacities.

The operating load corresponds to ca. 60%.
