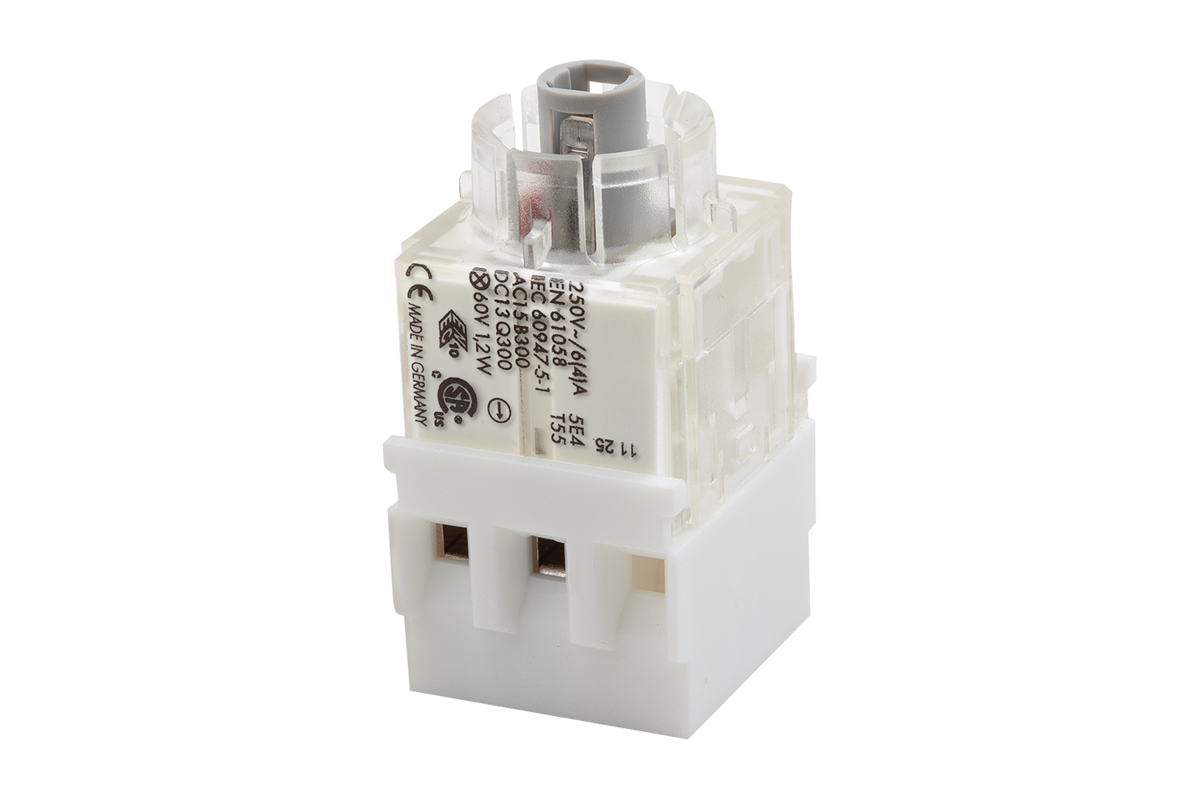

Contact element, illuminable, screw fitting key function type BZ

Contact element, illuminable, screw fitting key function type BZ

PriceOn quote● Supplier reply within 48 h

Request a quote for this product only, or add it to your selection to group several products and enter your details just once. Free and without obligation.

View this product on the manufacturer’s website

Why choose our Marketplace ?

  • Simplify your purchases
  • Over 20 years of expertise
  • Certified suppliers
  • Fast and free service
Logo norelem norelemManufacturer and supplier of standard components for machine construction and mechanical engineering, norelem…

Description

Contact elements for control and signalling devices. They are illuminable using an optionally available LED. The contact element is a compact, modular unit. It is clipped into the control and signalling device manually, tool-free.

Connected via a screw fitting.

Certificates / Standards met:
CCC, cCSAus, DNV, ENEC10, VDE, CE, UKCA, UR.

Technical specifications

Material
Plastic
Contact terminals AgNi.

Version
Screw connection.

Twin contact sensor, separate plungers, positive break NC contact as per EN 60947-5-1, app. K. Illuminable.

Technical Data
Mounting position: arbitrary.
Mechanical lifespan: 1,000,000 switching cycles.
Electrical life span: 1,000,000 switching cycles at nominal load.

Temperature range
Storage temperature: -50 °C to +85 °C.

Operating temperature:
-30 °C to +70 °C without lighting.
-30 °C to +65 °C with LED lighting.

Accessory
LED's 81100-90.
