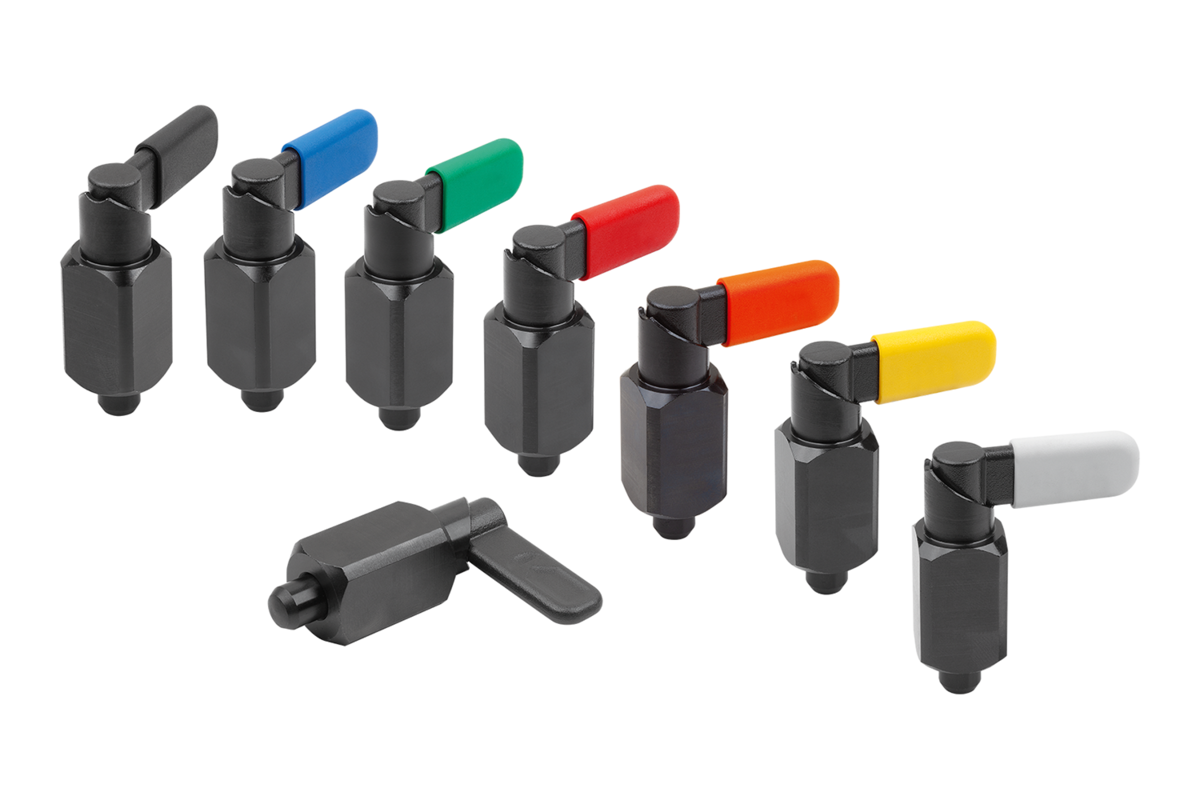

Cam-action indexing plunger, steel, with square sleeve

norelem

Cam-action indexing plunger, steel, with square sleeve
Description :

Cam-action indexing plunger are used where any change in locking position due to lateral forces should be prevented.
Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position.
The notch ensures that the grip remains in this position and the indexing pin remains retracted.

The square sleeve makes these plungers suitable for welding. To prevent overheating the spring, positioning with spot welding is recommended.

Advantages
Turning the grip through 180° retracts the pin.
Optionally available with coloured plastic grip caps.
Square sleeve for welding.

Characteristic(s)

Material

Grip and indexing pin steel.
Sleeve 1.0403.
Spring 1.4310
Grip cap thermoplastic PA.

Version
Sleeve and grip black oxidised.
Indexing pin hardened, ground and black oxidised.
Spring bright
Grip cap in various colours:
-black grey RAL 7021.
-pure orange RAL 2004.
-colza yellow RAL 1021.
-traffic red RAL 3020.
-signal green RAL 6032.
-traffic blue RAL 5017.
-Light grey RAL 7035.
