Description

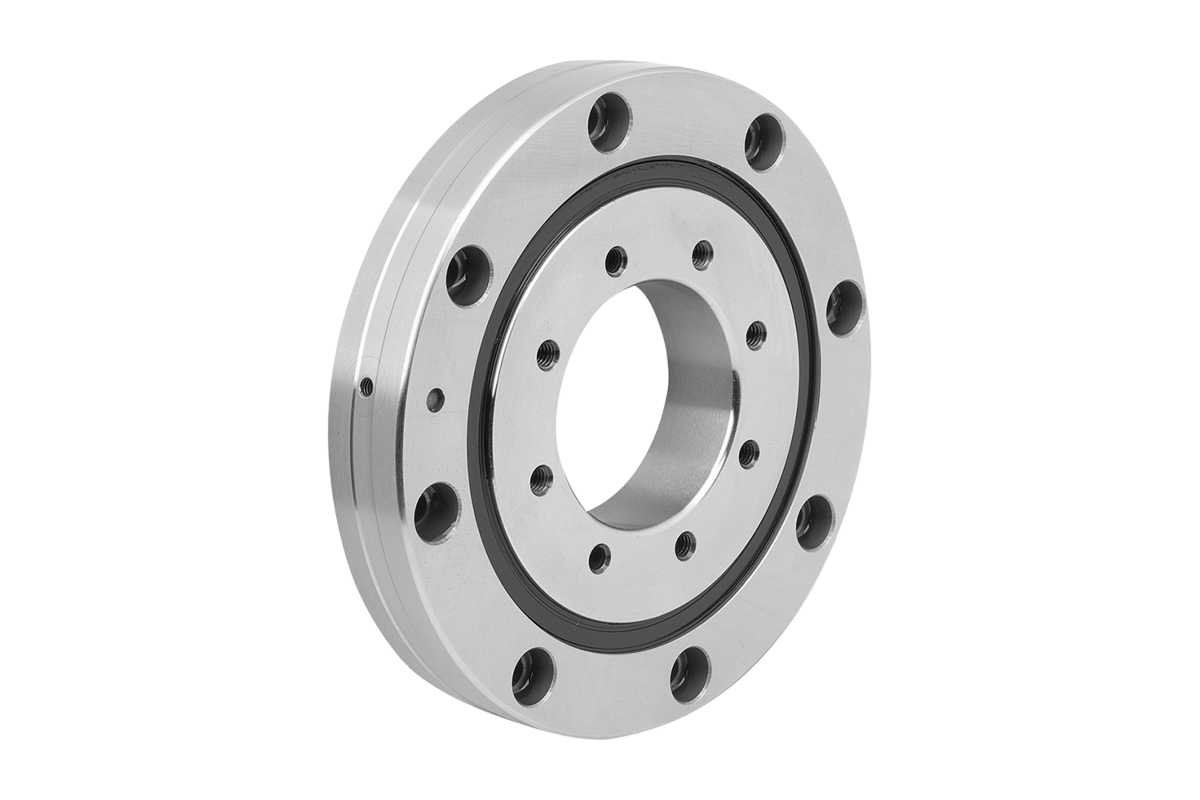

The cross-roller bearings with fastening holes on the inner and outer rings do not require flange discs or housings. This minimises assembly errors and ensures precise rotational accuracy and constant torque. The cross-roller bearing is suitable for both inner and outer ring rotation.
There are two options for the radial bearing play: Bearings with normal clearance C1 (order number: 23831-0XXXXX) and pre-tensioned bearings S1 (order number: 23831-1XXXXX).
The cross-roller bearings have tolerance class P0. This tolerance class describes the radial and axial deviation of the inner and outer ring.
The cross-roller bearings are sealed on both sides.
Other bearing clearances and tolerance classes are available on request.
Technical specifications
Material
Inner ring, outer ring and rolling elements, bearing steel.
| Brand | norelem |
|---|---|
| Category | Power transmission, Mechanical components |
| Subcategory | Bearings, Linear guides |
