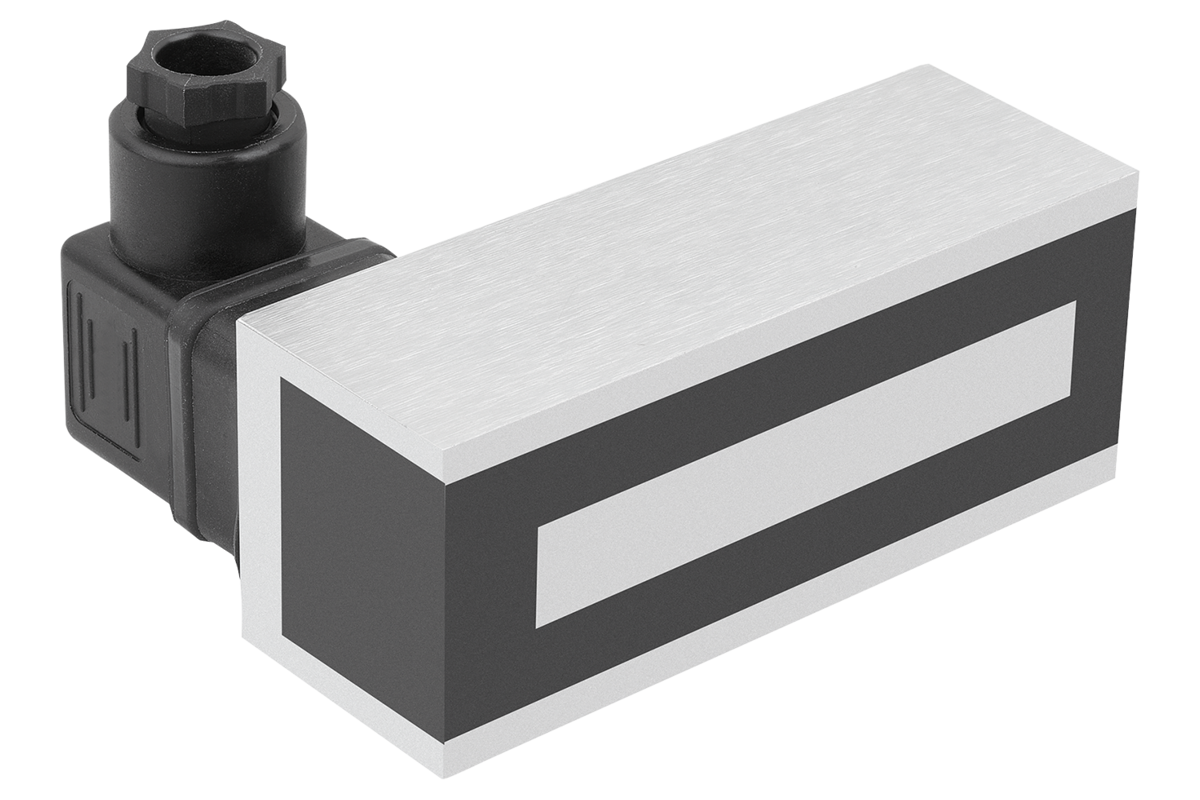

The electromagnets are operated with direct current. This generates a magnetic field through the coil in the core. The force field disappears again after the current is switched off.
The electromagnets are attached using the threads on the back. The number of tapped holes differs. The distance L2 is the respective distance between the tapped holes.
The power connection is made via the DIN valve connector as per EN 175301-803 (formerly DIN 43650). PINs are installed on this to attach wires directly.
The specified magnetic forces may be lower depending on the material thickness and the surface finish of the material.
Material
Housing steel.
Coil housing plastic.
Technical Data
Voltage: 24V DC.
Rating: up to IP 65.
Temperature range: up to 180 °C (insulation class H).
Application
The electromagnets are used for holding, supporting and fixating ferromagnetic workpieces.
