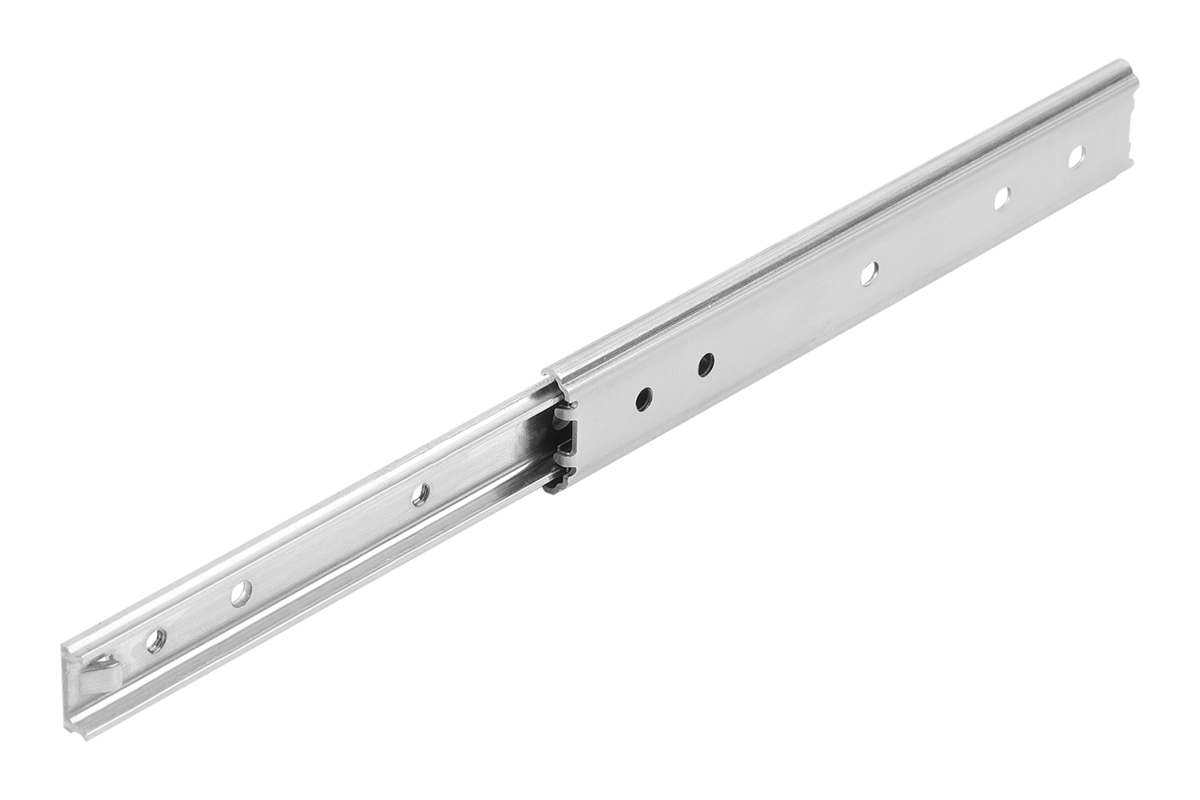

Telescopic slides, stainless steel, for side mounting

Partial extension both sides, load capacity up to 18 kg

PriceOn quote● Supplier reply within 48 h

Request a quote for this product only, or add it to your selection to group several products and enter your details just once. Free and without obligation.

View this product on the manufacturer’s website

Why choose our Marketplace ?

  • Simplify your purchases
  • Over 20 years of expertise
  • Certified suppliers
  • Fast and free service
Logo norelem norelemManufacturer and supplier of standard components for machine construction and mechanical engineering, norelem…

Description

On telescopic slides with partial extension, the travel is less than the installed length. The dynamic load capacity of the telescopic slides indicates the maximum load rating of a vertically mounted slide pair when the entire extension length is used.

The specified load capacities refer to the maximum value at 50,000 cycles.

The load capacity is ca. 75% lower by horizontal mounting.

The head height of the fastening screws should not exceed 0,9 mm otherwise there is a risk of collision with other parts of the slide.

Style A: greased.
Style B: with food-grade lubricant.

A lubricant (NSF H1) that is suitable for the foodstuff industry is used.

Recommended screws: M 2.6.

Maximum screw length = panel thickness + 1.5 mm.

Technical specifications

Material
Rails and ball cage stainless steel 1.4301.

style A:
Balls steel.

style B:
Balls stainless steel 1.4125.

Version
Rails bright.
Balls hardened.

Note for ordering

Sold individually.

Temperature range
5 °C to 35 °C

Advantages
Smooth running
High lateral stability due to precise guidance
