Description

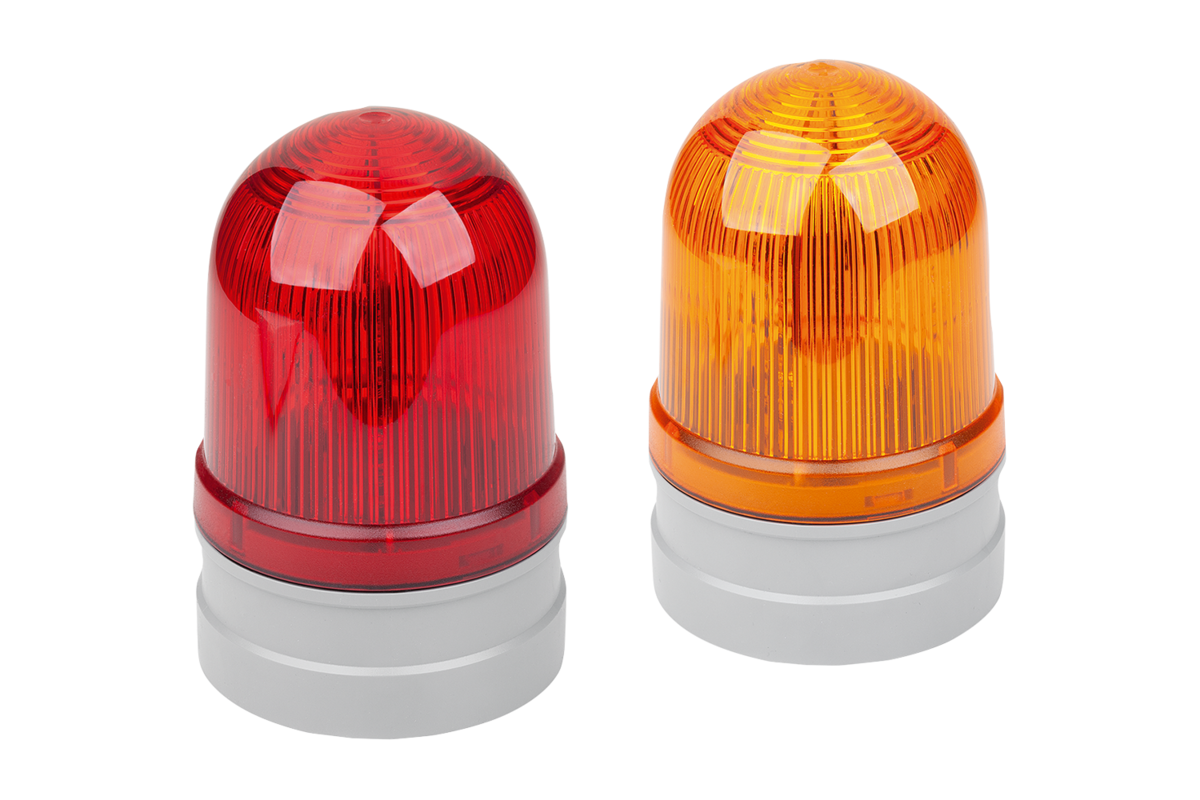

LED auxiliary lamp for optical signaling of status and faults in machines and equipment. For signalling over medium distances (10 - 30 m). Equipped with the latest LED technology, the auxiliary lamps provide a continuously visible or flashing light that can be seen from all sides (adjustable via the electrical connection in the housing).
The electrical connection is made in the housing via push-in terminals. Cable diameter 6 to max. 12 mm (depending on the mounting adapter).
Wire cross-section 0.25 to 1.5 mm².
An mounting adapter is required to install the auxiliary lamps. Order this separately.
Certificates / Standards met:
CE, EAC, WEEE, cULus, UKCA, UL (Type 12).
Technical specifications
Material
Light polycarbonate.
Housing polycarbonate, ABS.
Version
Light outside smooth, inside ribbed. With integrated LED.
Housing grey.
Technical Data
Mounting position: arbitrary.
Light pattern: continuous/blinking (adjustable via the electrical connection).
Blink frequency: 1 Hz
Pulse and pause duration (ms) 466ON / 557OFF
Optical lifespan: max. 50,000 h.
Temperature range
-30 °C to +60 °C
