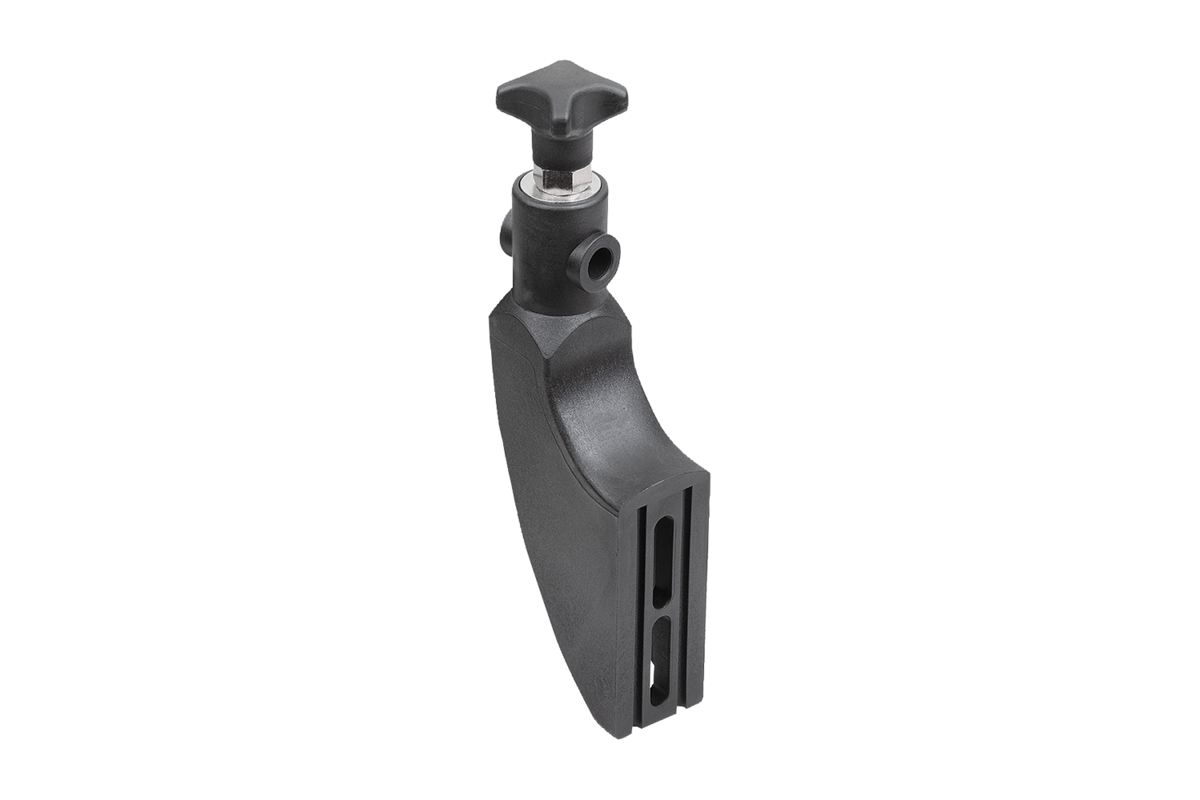

Lateral guide holder, plastic, adjustable with palm grip

Lateral guide holder, plastic, adjustable with palm grip

PriceOn quote● Supplier reply within 48 h

Request a quote for this product only, or add it to your selection to group several products and enter your details just once. Free and without obligation.

View this product on the manufacturer’s website

Why choose our Marketplace ?

  • Simplify your purchases
  • Over 20 years of expertise
  • Certified suppliers
  • Fast and free service
Logo norelem norelemManufacturer and supplier of standard components for machine construction and mechanical engineering, norelem…

Description

Lateral guide holders are the basis for the adjustable lateral guides. They are screwed to the side of the conveyor system. The lateral guide holder can be used to clamp suitable pins (connected with a clamp for lateral guides) using the palm grip. The distance between the clamp/guide and holder can be easily and variably adjusted. The swivel head enables the position of the clamp to be adjusted through 360°.

Through targeted product guidance on the conveyor system, the items are maintained on the conveyor belt during transportation.

Technical specifications

Material
Holder, swivel head and palm grip thermoplastic.
Eye bolt stainless steel.
Bush brass.

Version
Holder, swivel head and palm grip black.
Eye bolt bright.
Bush nickel-plated.

On request
Matching spacers.
Without stop edge.
Lateral guide holder stainless steel.

Accessory
Pin 29301-10.
Pin 29302-10.
Pin 29303-10.
Double clamp 29304.
Double clamp 29304-02.
